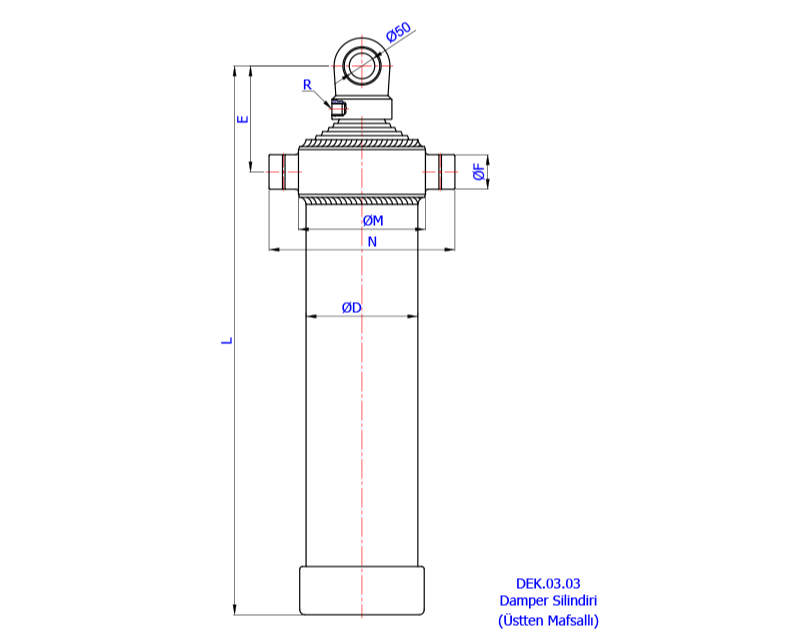

Damper Silindiri (Üstten Mafsallı)
Kapasite Tablosu
| Kod |
Kademe |
L (mm) |
L + Ls (mm) |
Strok (Ls) (mm) |
ØD |
E |
ØF |
ØM |
N |
R |
Yağ Hacmi (lt) |
Kapasite (ton) |
Ağırlık (kg) |
| DEK.03.03.140.01 | 3 | 1172 | 3652 | 2480 | 140 | 192 | 55 | 175 | 295 | 3/4” | 25 | 19 | 83 |
| DEK.03.03.165.01 | 3 | 1472 | 4832 | 3360 | 165 | 192 | 65 | 204 | 320 | 3/4” | 44 | 30 | 146 |
| DEK.03.03.165.02 | 3 | 1622 | 5432 | 3810 | 165 | 192 | 65 | 204 | 320 | 3/4” | 50 | 32 | 163 |
| DEK.03.03.165.03 | 4 | 1182 | 4582 | 3400 | 165 | 204 | 65 | 204 | 320 | 3/4” | 36 | 33 | 124 |
| DEK.03.03.165.04 | 4 | 1332 | 5332 | 4000 | 165 | 204 | 65 | 204 | 320 | 3/4” | 43 | 35 | 142 |
| DEK.03.03.165.05 | 4 | 1482 | 5962 | 4480 | 165 | 204 | 65 | 204 | 320 | 3/4” | 48 | 35 | 161 |
| DEK.03.03.190.01 | 3 | 1472 | 4832 | 3360 | 190 | 202 | 68 | 235 | 351 | 1” | 56 | 28 | 125 |
| DEK.03.03.190.02 | 4 | 1182 | 4582 | 3400 | 190 | 212 | 68 | 235 | 351 | 1” | 58 | 30 | 125 |
| DEK.03.03.190.03 | 4 | 1332 | 5332 | 4000 | 190 | 212 | 68 | 235 | 351 | 1” | 60 | 32 | 180 |
| DEK.03.03.190.04 | 4 | 1482 | 5962 | 4480 | 190 | 212 | 68 | 235 | 351 | 1” | 65 | 35 | 193 |
| DEK.03.03.215.01 | 5 | 1400 | 7000 | 5600 | 215 | 300 | 68 | 235 | 351 | 1” | 96 | 40 | 320 |
| DEK.03.03.245.01 | 5 | 1400 | 7000 | 5600 | 245 | 300 | 68 | 290 | 410 | 1” | 128 | 50 | 269 |
